The new Axiom Precision AutoRoute PROV5 Series of CNC routers offers all of the great features you’ve come to know and love from our Pro series of machines but adds increased holding torque with 48V stepper motors, an improved cooling system, and higher spindle performance thanks to an upgraded VFD.
The updated PRO series offers 4-axis capability, powerful electro spindle performance, and rotary machining capability in a compact industrial machine.

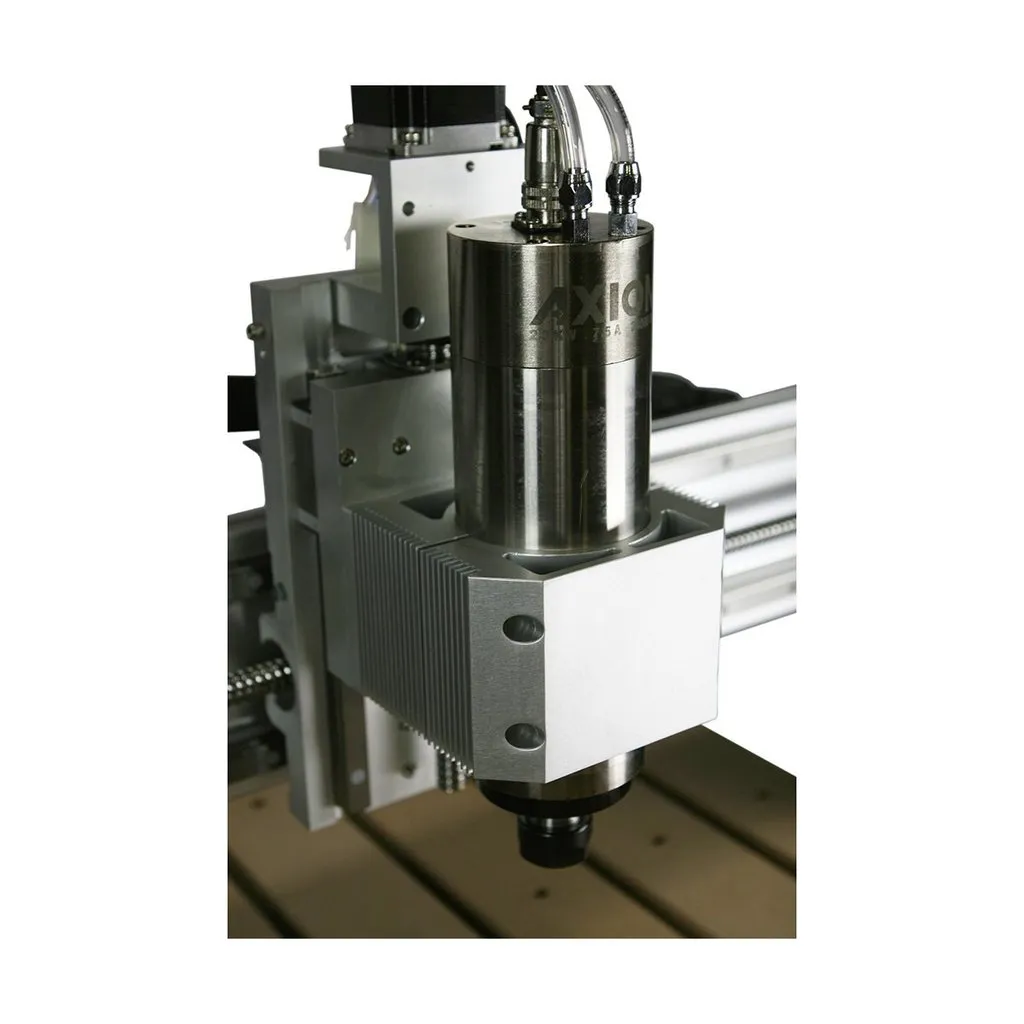

Our PRO series CNC routers provide a full 6.5'' of gantry clearance and a quiet yet powerful 3HP electro-spindle with integrated liquid cooling system.
Each PRO series machine is also prewired to accept our optional Rotary Kit.

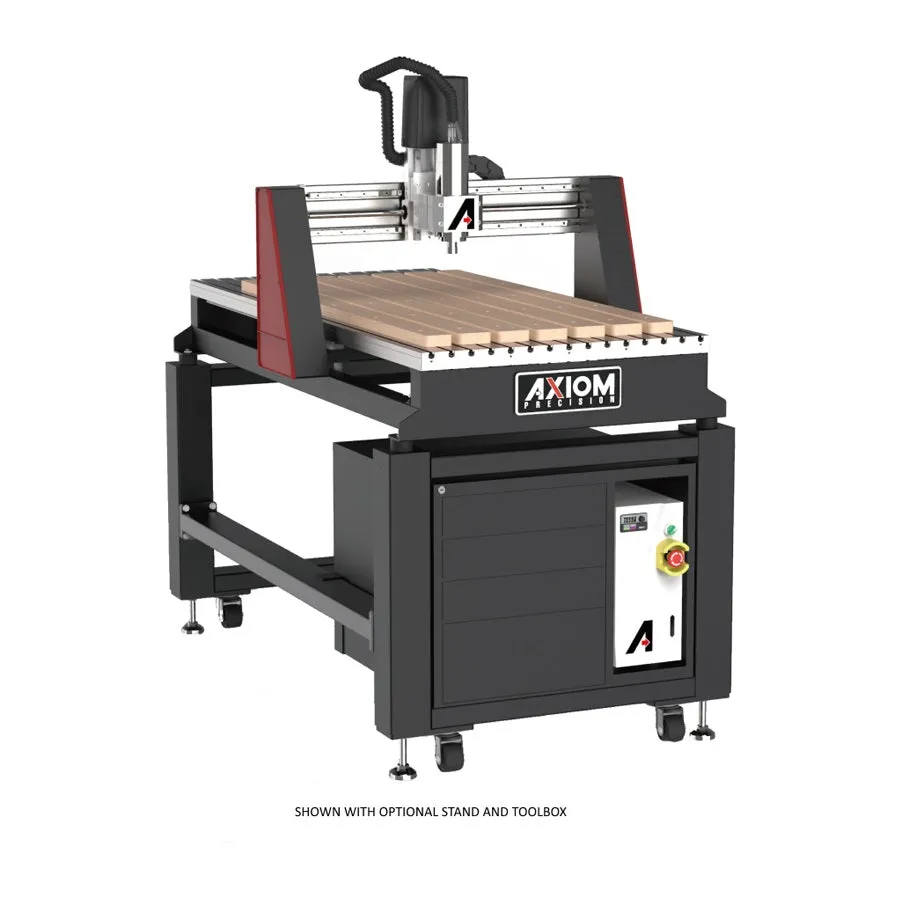

- AR8 Pro V5 CNC Machine (24″ x 48″ x 6″)
- AR8 Stand, Toolbox

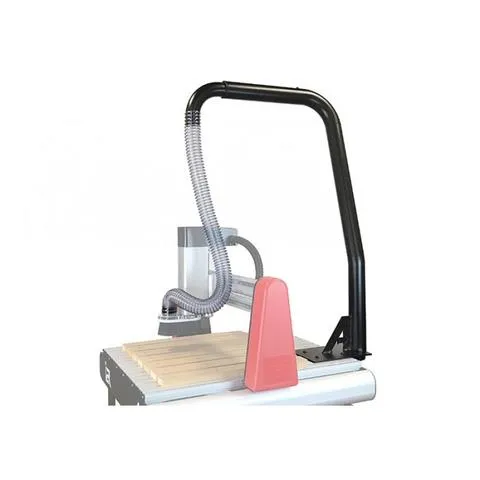

- AR8 Overarm Dust System & Dust Shoe

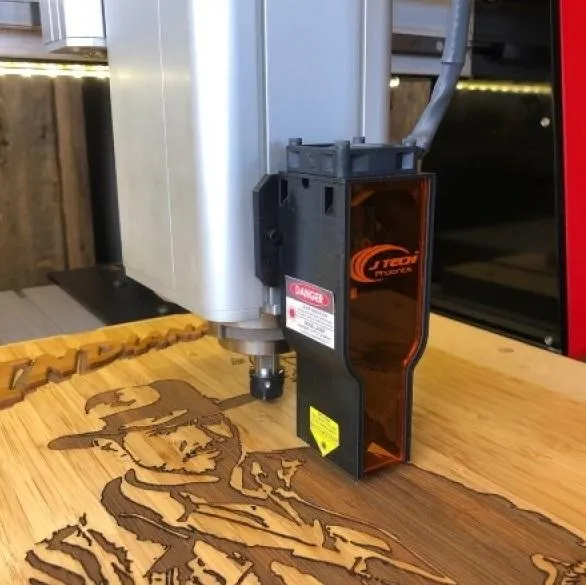

- 4.2W Laser Kit by JTech

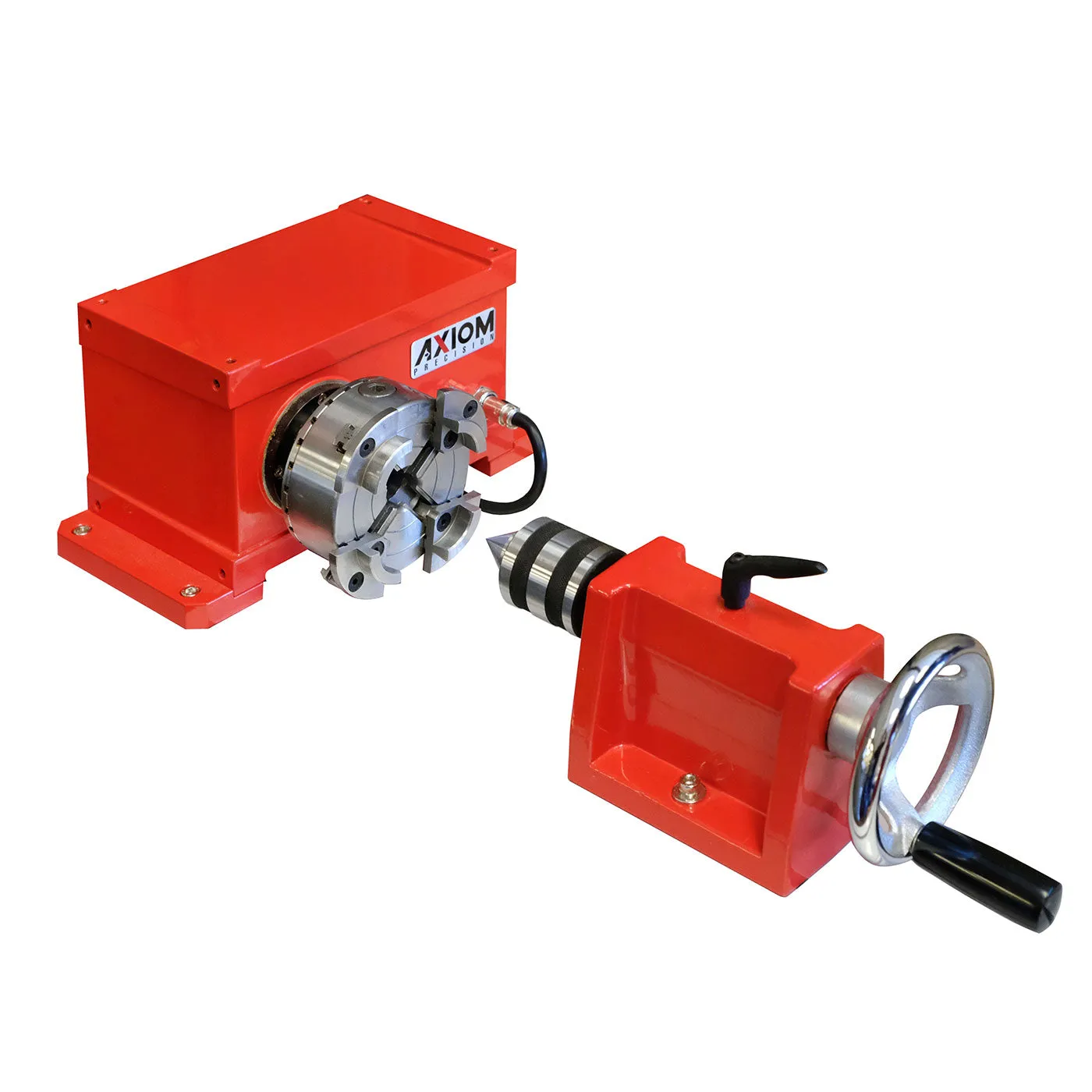

- 4th Axis Rotary Kit
- LED Kit
- Vacuum Hold Down Kit & 4 Hold Down Clamps

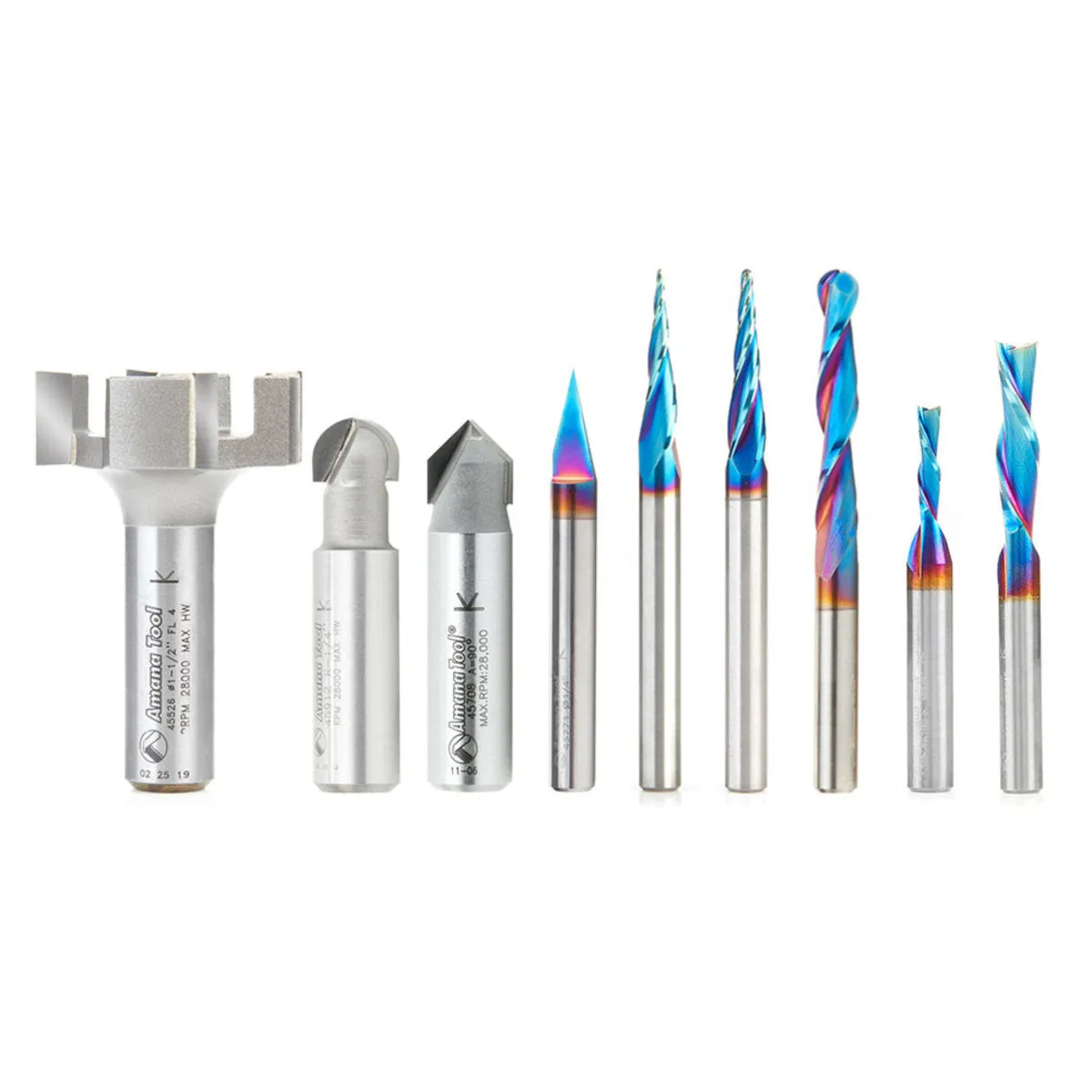

- 9pc Amana Spectra Bit Set
- Pendant Protector

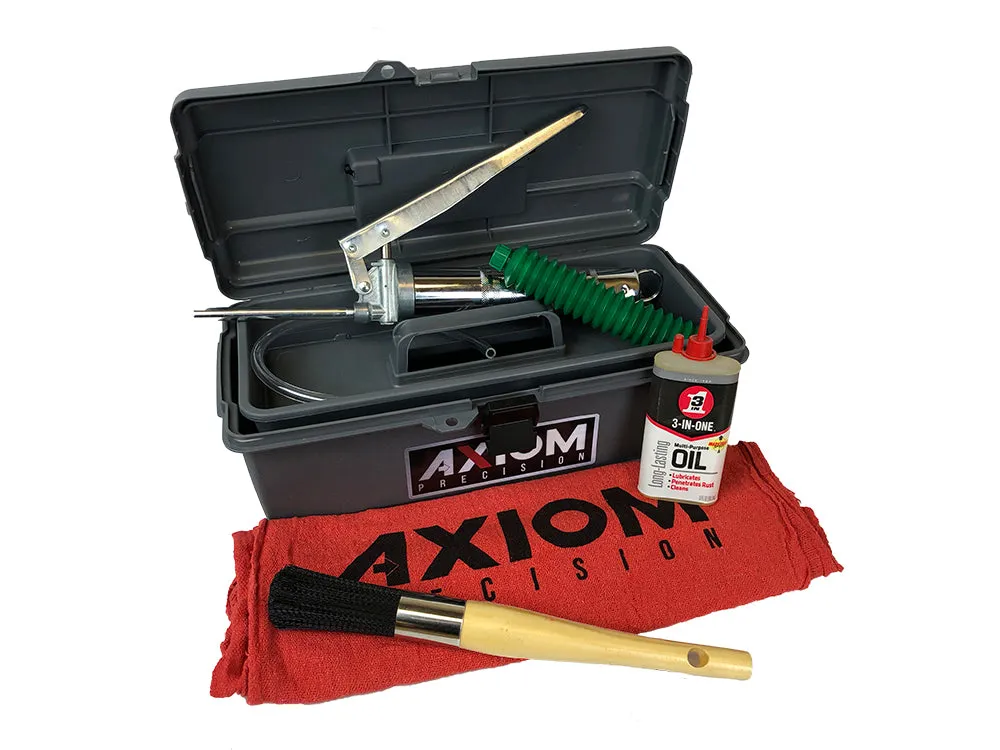

- CNC Maintenance Kit
- VCarve Pro Software (40-seat education site license)
- 4 Hour Virtual Training Course
- Lifetime Technical Support (Software & Machine)
- Assembled, Tested, Delivered to School* and ready to run (stand requires assembly)
*Includes liftgate service direct to the school. Note that additional charges may apply to remote areas in Canada.

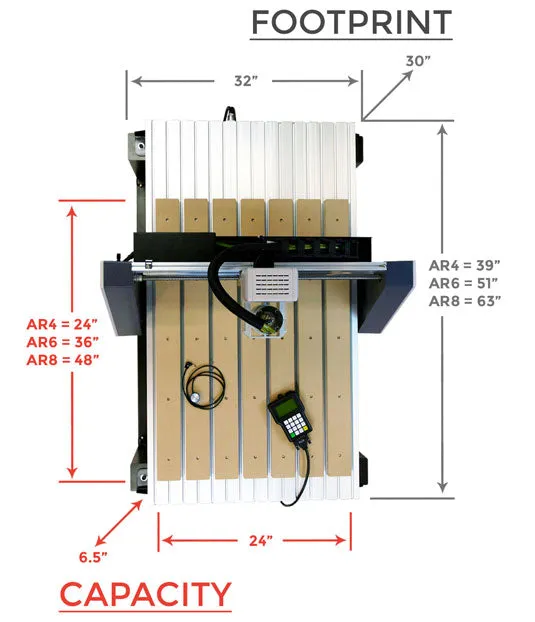

| X axis travel | 24" (610mm) |
| Y axis travel | AR8 = 48" (1210mm) |
| Z axis travel | 6" (153mm) |
| C axis travel | 360deg |
| Table work area | AR8 = 28.4" x 63" |
| Spindle Configuration | ER20 |
| Included Collets | 1/4" & 1/2" |
| Electro Spindle | 2.2KW |
| Spindle speed | 0~24000 RPM |
| Rapid feed rate | 200 IPM (5 MPM) |
| Precision Linear Guideway | X/Y/Z |

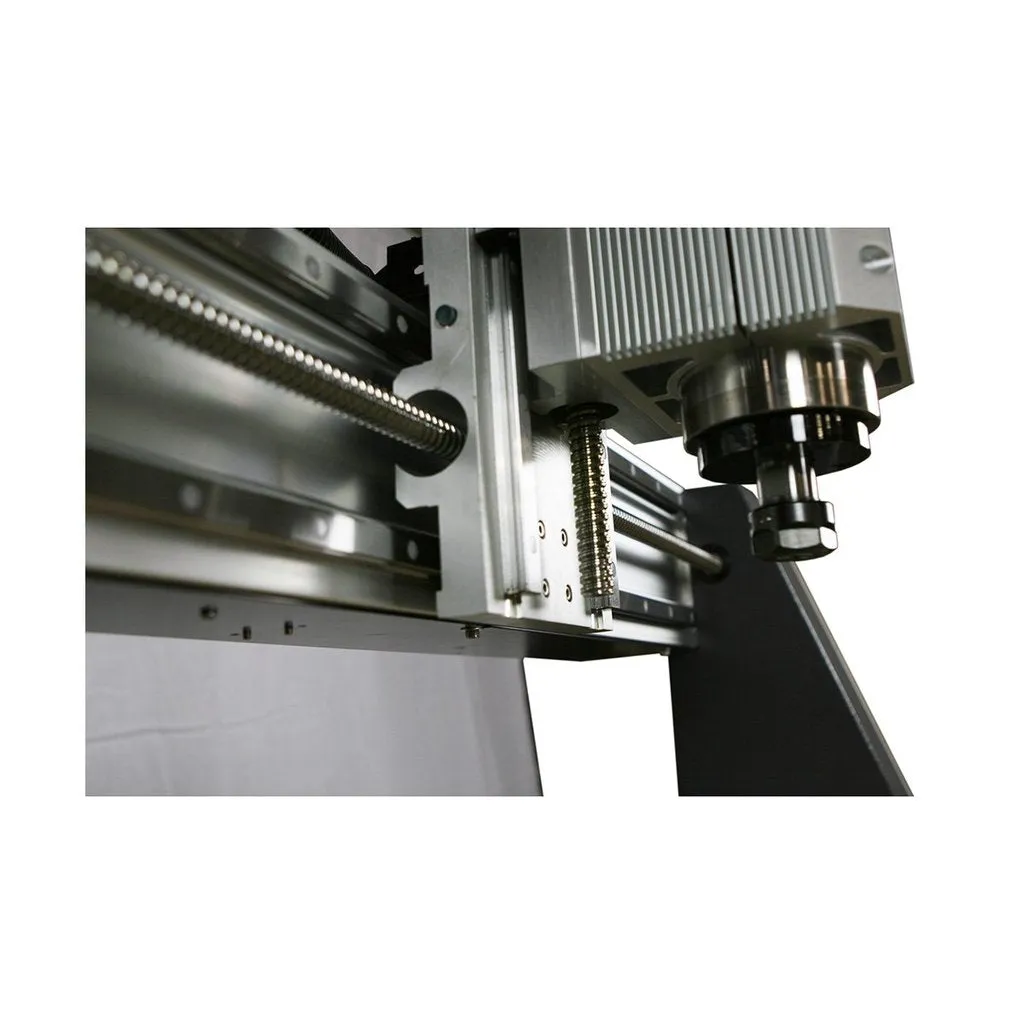

| Precision Ball Screw | X/Y/Z |
| Ball Screw Diameter | 16mm |
| Positional Accuracy | /- .00393" (0.10mm) |
| Power requirements | 220 V,50~60 Hz, 10A, 1-Phase |
| Working Table | High rigidity Aluminum Extrusion |
| Gantry bridge | High rigidity Aluminum Extrusion |
| Gantry Supports | Aluminum alloy gravity cast |
| Gantry Clearance | 6.5" (165.1mm) |
| Machine Base | All Welded Steel |
| Frame Machine Dimensions | AR8 = 62.99"L x 37.36"W x 30.27"H |
| Shipping Dimensions | AR8 = 65"L x 39"W x 33"H |
| Shipping Weight | AR8 = 405 lbs |

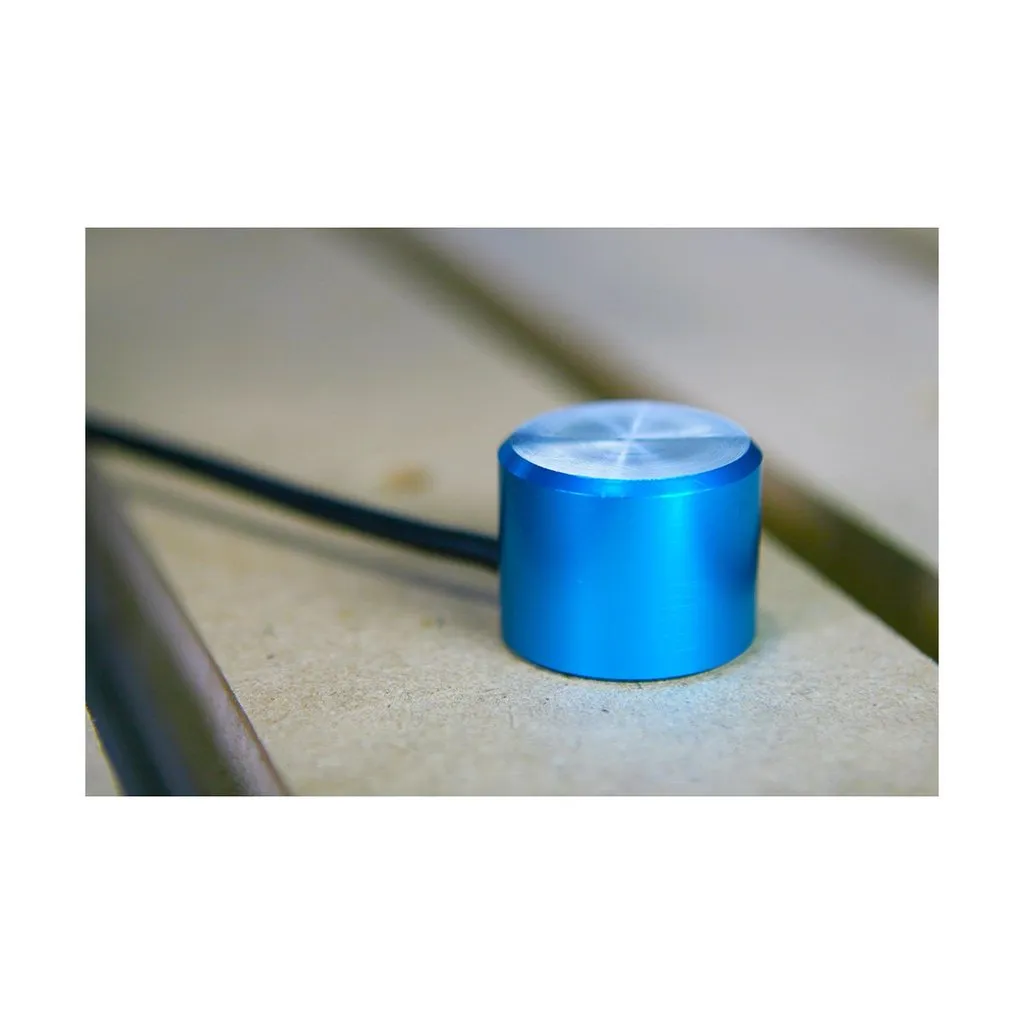

| Tool Touch-Off Device | Included |
| Onboard Cooling System | Included |

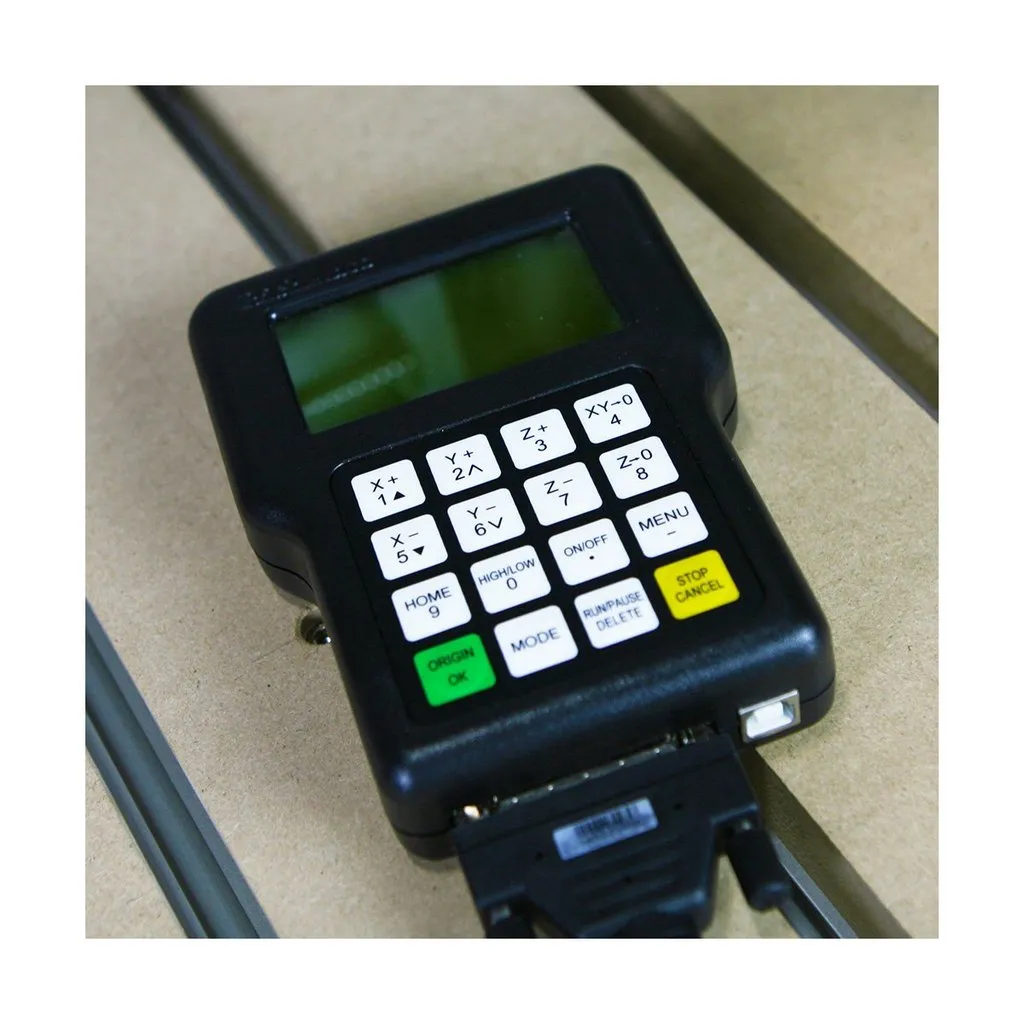

| Controller | Richauto B18 DSP 4-Axis Controller CNC motion control system USB port for easy file transfer. |
