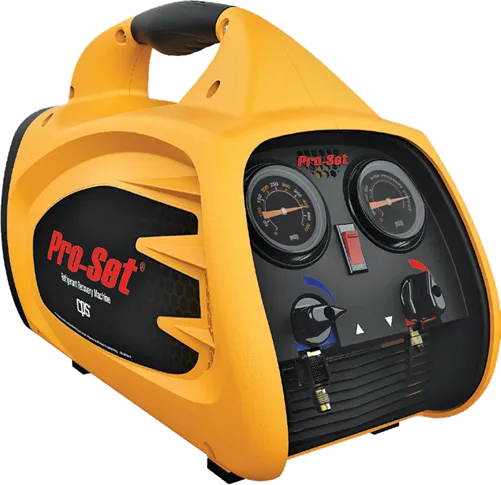

TRS600 CPS (Ignition Proof) 2 Cylinder Commercial Refrigerant Recovery System. Fast, Lightweight, Portable, Oilless recovery of all gasses and Now Approved For R-1234yf, R-600 & R-601 Refrigerants. Weighing in at only 26 pounds. CPS introduces a new addition to its recovery machine line-up, the Pro-Set TRS600. A lightweight, efficient and reliable refrigerant recovery machine in a compact, rugged, contemporary housing – the TRS600 offers the ideal combination of form and function to make refrigerant recovery fast and easy! The TRS600 adds the speed and convenience of CPS's proven oilless technology plus added condenser cooling in a lightweight package that's sure to speed up any recovery job. A Powerful 2/3 HP oil-less 2 cylinder reciprocating recovery compressor provides speed and and the added condenser adds ample cooling to keep tank temperatures low for fast recovery in high temperature environments. An automatic low pressure shutoff feature turns unit off when recovery is completed. Rugged high density, double walled, contemporary plastic housing with easy view top mounted controls for toughness. R-410a ready with 550 Psi high pressure shut-off switch. No tool access suction housing for easy filter clean/change. The unit also features a Cleanable 100 - mesh screen integrated into Suction Port to keep particulates from damaging the unit. Optional tank overfill sensor cord kit can be added for safety when not using a scale. A 550 PSIG High Pressure cutout switch with LED indicator provide easy view when things get hot.
Product Features
Maintenance free oil-less compressor design
Powerful 2/3 HP oil-less 2 cylinder reciprocating recovery compressor
Exceptional compressor, condensing and cooling systems allow fast recovery in high temperature environments
Automatic low pressure shutoff feature turns unit off when recovery is completed
Rugged high density, double walled, contemporary plastic housing with easy view top mounted controls
R-1234yf Approved
R-1234ze Approved
R-600 & R-601 Approved
R-410a ready with 550 Psi high pressure shut-off switch
Ergonomic well balanced design for easy transport - weighs 26 lbs (11.8 kg)
No tool access suction housing for easy filter clean/change
Worldwide patents pending
Durable inlet and outlet ball valve construction with gauges
Integrated component moorings for quiet operation
Less parts provides greater reliability
SPECIFICATIONS
Model Number
TRS600
Compressor Type
2 Cylinder Oil-less Reciprocating Compressor
Dimensions
9.75" Wide x 21" Long x 14" High
Weight
26.0 lbs
Operating Temperature
32°F (0°C) to 120°F (49°C)
Power Source
115 V 50 / 60 Hz
Power Consumption
1000 W
Filtration
Cleanable 100-mesh screen integrated into Suction Port
