Name: Specialized 2023 Stumpjumper EVO Comp
SKU: 232825

Specialized 2023 Stumpjumper EVO Comp

In order to bring EVO fun to the masses, we took our FACT 11m carbon frame (yes, the same one as the S-Works), dressed it with a bullet-proof SRAM GX Eagle 12-speed drivetrain and a tough-as-nails set of alloy wheels, and set it loose to shred unsuspecting trails everywhere.

All the travel in the world is useless without the proper shock tuning and kinematics. For the new Stumpjumper EVO design, we prioritized kinematic performance. Applying lessons learned while developing the Enduro, then following that with more than 1,000 hours of field and suspension lab development, we’ve not only improved the pedaling performance of the Stumpjumper, but we’ve made it more capable, agile, and lively. We increased anti-squat, so the suspension better resists pedal bob, and we further improved bump performance on square-edge hits. Bottom line? This thing shreds trails, not legs.

The S-Sizing geometry of the new Stumpjumper EVO is our most progressive yet. Long, low, slack, short offset fork, steeper seat tube angle – these are requirements for modern progressive riding. But not everyone jibs the same way, which is why the geo on the new Stumpjumper EVO is fully adjustable with six different settings. You can adjust the BB height by 10mm, you can adjust your head angle by two-degrees, and you can make these adjustments independently of each other. Finally, if you want to go full-party mullet-mode, the EVO lets you run a 27.5-inch rear wheel mated with a 29-inch front.

Rider-First Engineered™ frames use a size-specific approach to ride characteristics that ensures benchmark handling and flawless performance, regardless of frame or rider size. Whether you’re a jump-happy grom riding an S1, or a DH-fiend giant in need of the lengthy S6, you’ll experience the same ride traits – rail-sharp cornering and balanced front and rear stiffness – at the lightest-possible weight.

We introduced the SWAT™ door on the Stumpjumper in 2016, adding room IN your frame for those “oh sh**t” necessities like pumps and spare tubes, and immediately rendering jersey pockets redundant. With the new Stumpjumper, we have increased the volume and added a SWAT™ Bladder, giving you an extra 22oz of water storage – the same size as a small water bottle – hidden in your downtube.

Specifications

Specialized 2023 Stumpjumper EVO Comp

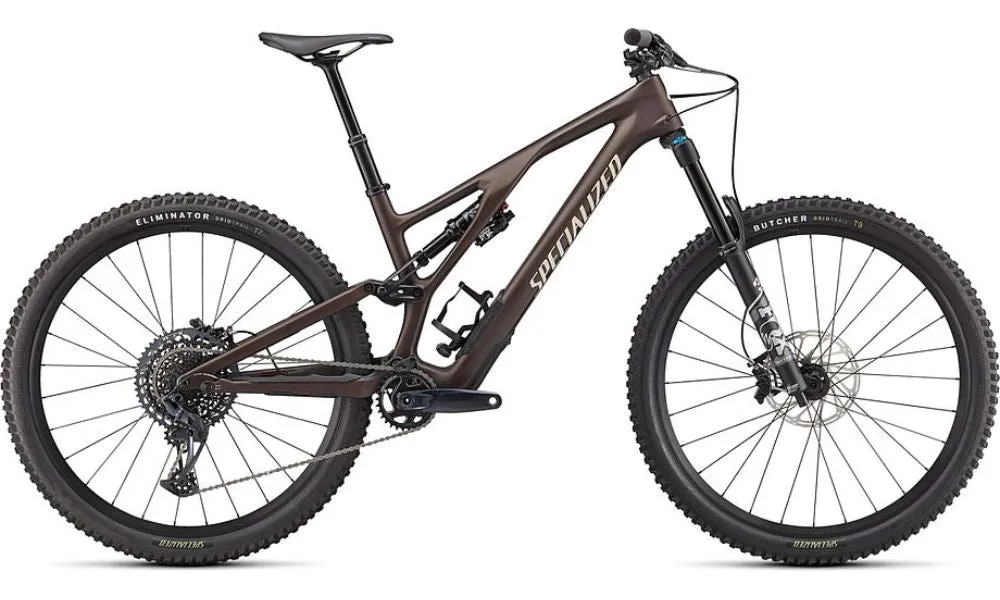

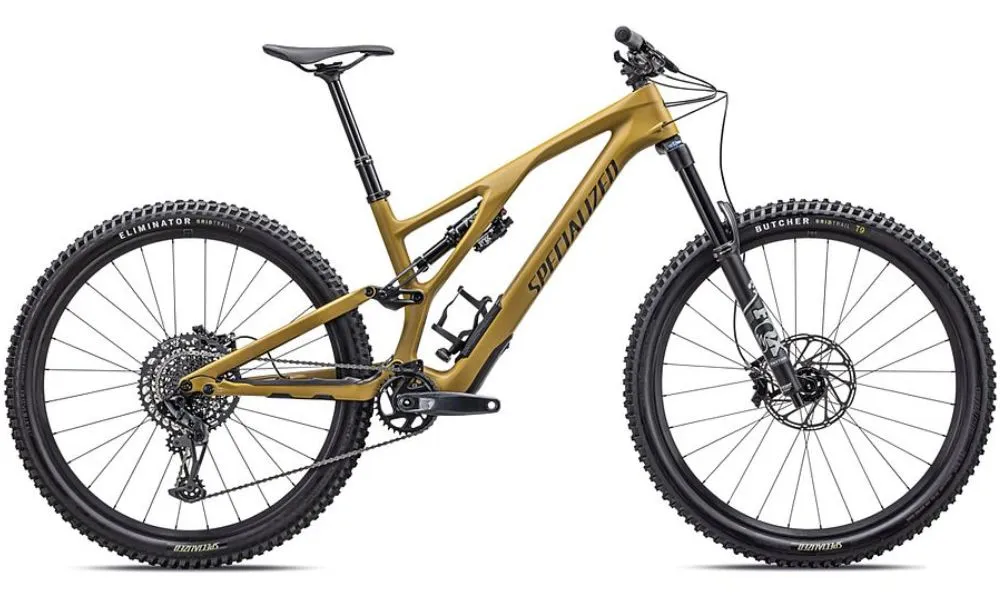

Colour: Satin Doppio/Sand and Satin Harvest Gold/Midnight Shadow
Frame: FACT 11m carbon chassis and rear-end, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, head tube angle adjustment, horst pivot BB adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel
Fork: FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset, S1: 150mm of travel, S2-S6: 160mm of travel
Shock: FOX FLOAT X Performance, Rx Trail Tune, EVOL Air sleeve, 2-position lever w/ LSR adjustment, S1:210x50mm, S2-S6:210x55mm

Drivetrain

Crankset: SRAM X1 Eagle, DUB, 32T, S1: 165mm, S2-S5: 170mm, S6: 175mm
Pedals:
Chain: SRAM NX Eagle, 12-speed
Bottom Bracket: SRAM DUB, BSA 73mm, Threaded
Rear Derailleur: SRAM GX Eagle, 12-speed
Front Derailleur: NA
Derailleur Shifter: SRAM GX Eagle, 12-speed
Freewheel/Cassette: Sram XG-1275, 12-speed, 10-52t

Wheels

Tyres: [F] Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" [R] Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 29x2.3"
Wheels/Rims: Specialized 29, hookless alloy, 30mm inner width, tubeless ready
Hubs: [F] Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h [R] Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h

Braking System

Brakes: [F] and [R] SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm Centerline

Other

Handlebar: Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
Stem: Alloy Trail Stem, 35mm bar bore
Saddle: Bridge Comp, Hollow Cr-mo rails, 155/143mm
Seat Post: X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 175mm, S6: 190mm
SWAT: Increased-volume SWAT™ Door integration with 22oz SWAT™ Bladder

Sizing Guide

Specialized 2023 Stumpjumper EVO Comp

	S1	S2	S3	S4	S5	S6
BB Drop	40	35	35	35	35	35
BB Height	335	340	340	340	340	340
Bike Standover Height	733	764	763	762	767	770
Chainstay Length	438	438	438	438	448	448
Crank Length	165mm	170mm	170mm	170mm	170mm	175mm
Fork Length (full)	561	571	571	571	571	571
Fork Rake/Offset	44	44	44	44	44	44
Front Center	732	756	780	809	838	873
Handlebar Width	800mm	800mm	800mm	800mm	800mm	800mm
Headtube Angle	64.5	64.5	64.5	64.5	64.5	64.5
Headtube Length	95	95	105	115	125	135
Max Seatpost Insertion	180	180	200	220	240	260
Min Seatpost Insertion	80	80	80	80	80	80
Reach	408	428	448	475	498	528
Saddle Width	155mm	155mm	143mm	143mm	143mm	143mm
Seat Tube Angle	78	77.6	77.2	76.9	77	77
Seat Tube Length	385	385	405	425	445	465
Seatpost Length	100mm	125mm	150mm	170mm	170mm	190mm
Stack	613	617	626	635	644	654
Stem Length	40mm	40mm	40mm	40mm	50mm	50mm
Top-tube Length (horizontal)	538	564	590	623	647	679
Trail	131	131	131	131	131	131
Wheelbase	1167	1191	1216	1247	1285	1319
