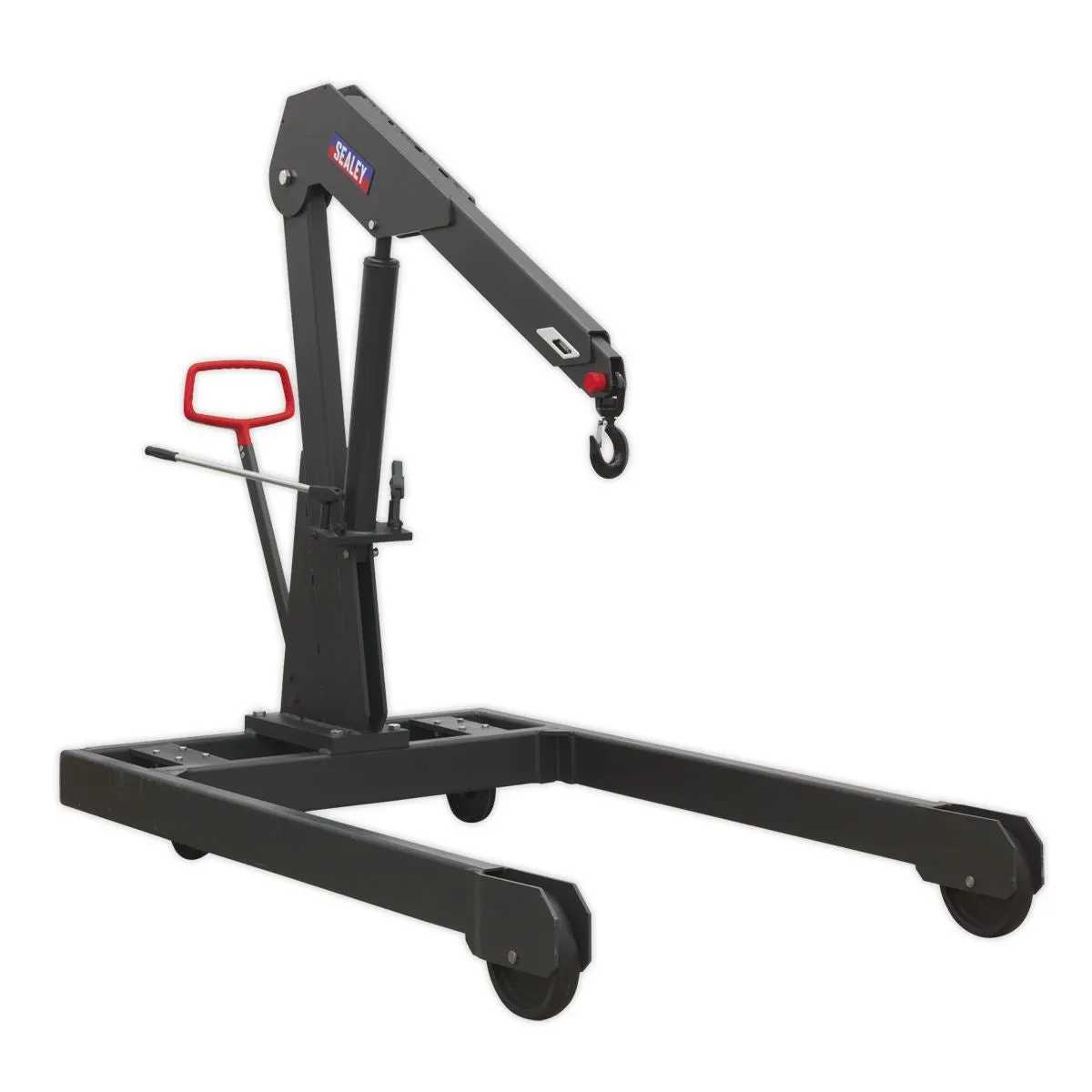

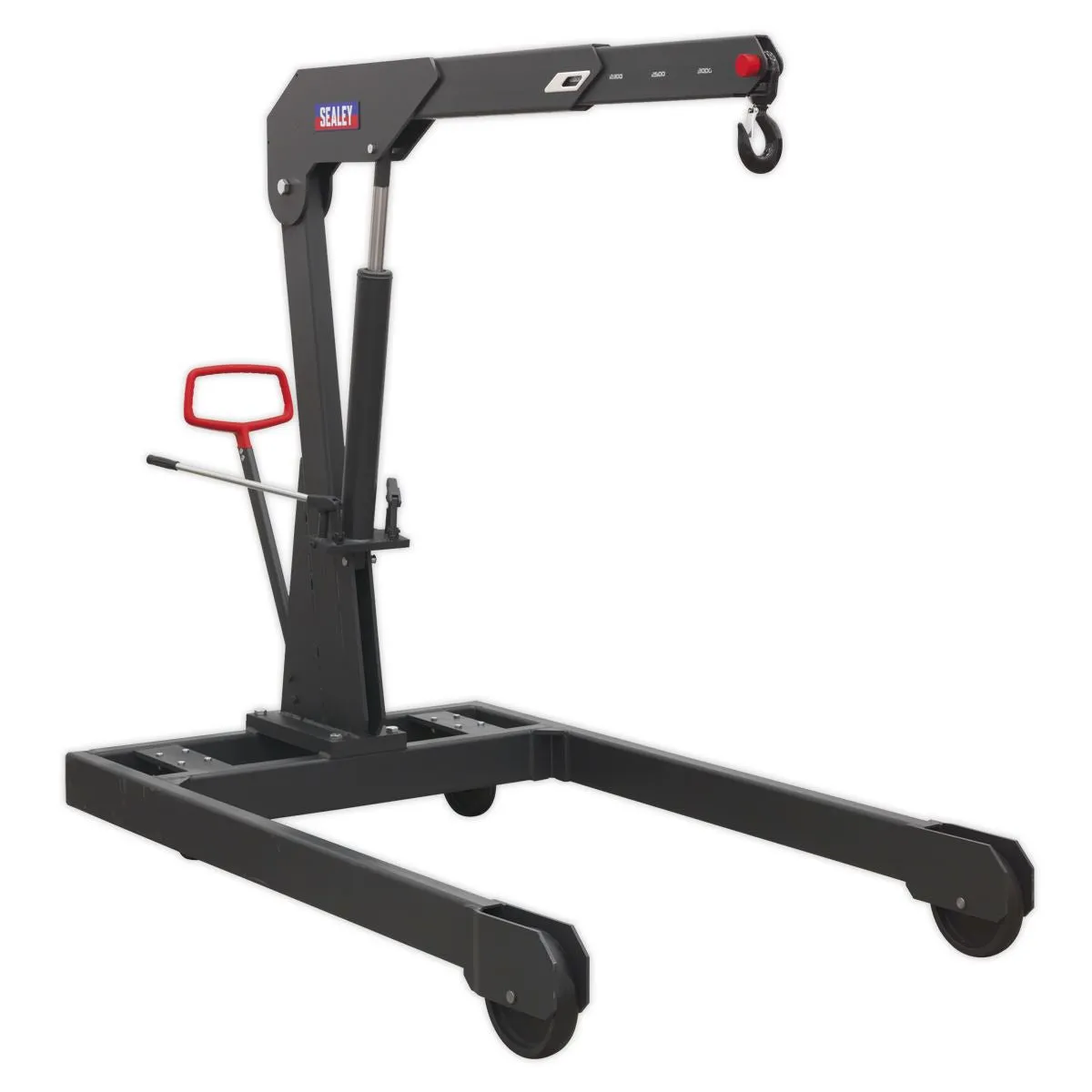

Sealey Premier Premier Engine Crane 3 Tonne - Fixed

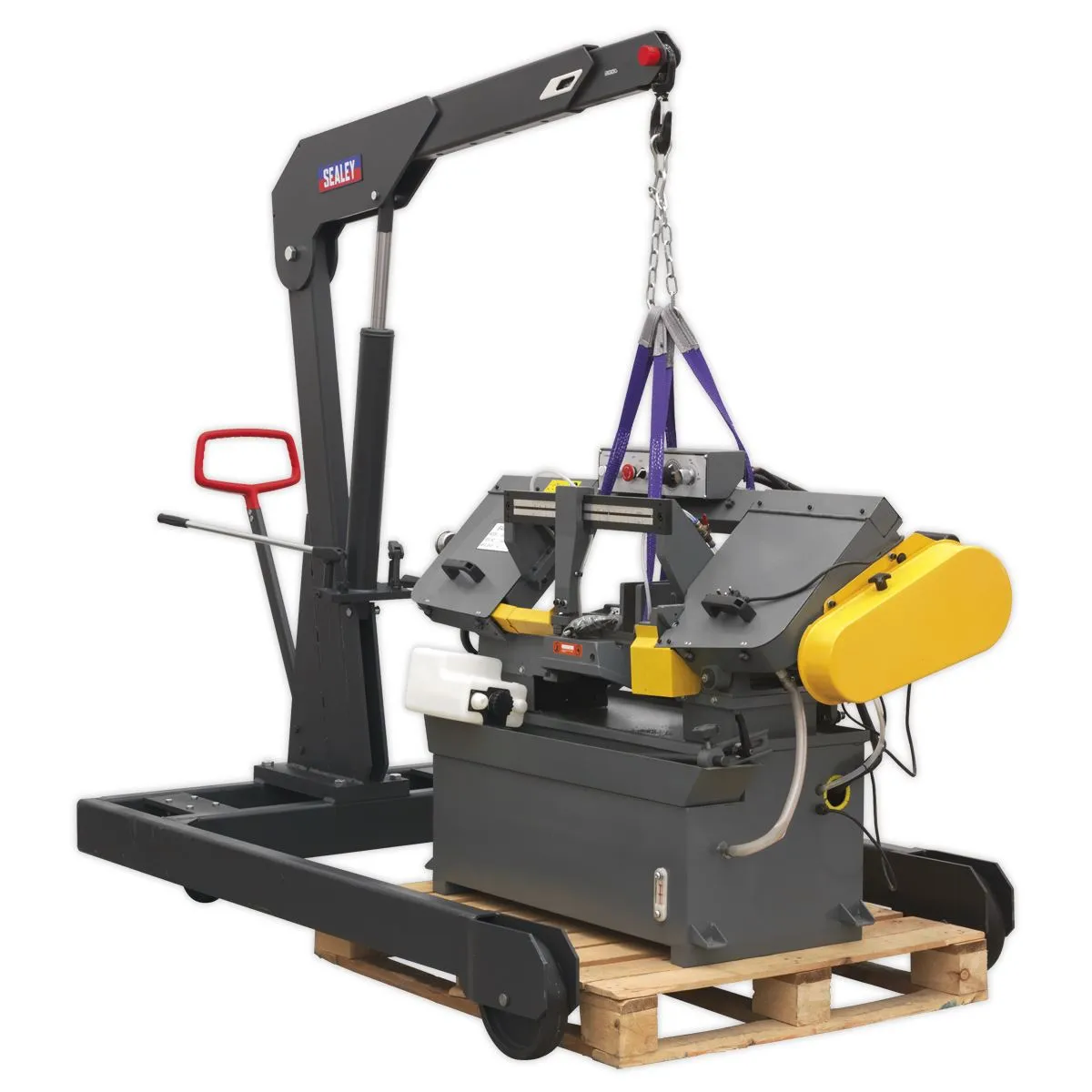

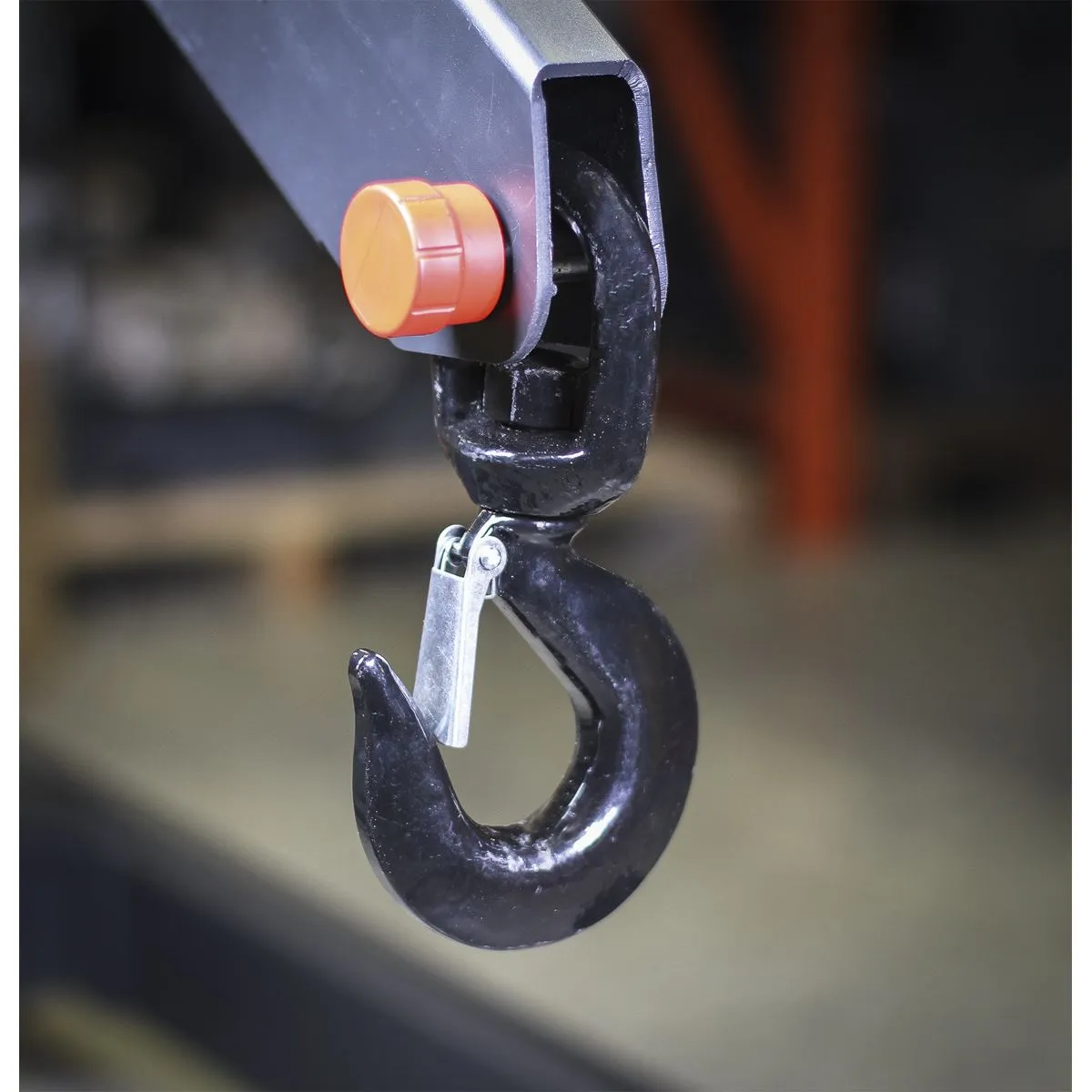

Professional 3 Tonne fixed crane with parallel legs, designed to accommodate a standard size pallet and features heavy-duty forged hook.
Lowers rapidly with no load, whilst providing smooth, controlled lowering under load conditions.
Beam can be set in 4-positions, with a capacity of 2000kg at its full extension of 1870mm.

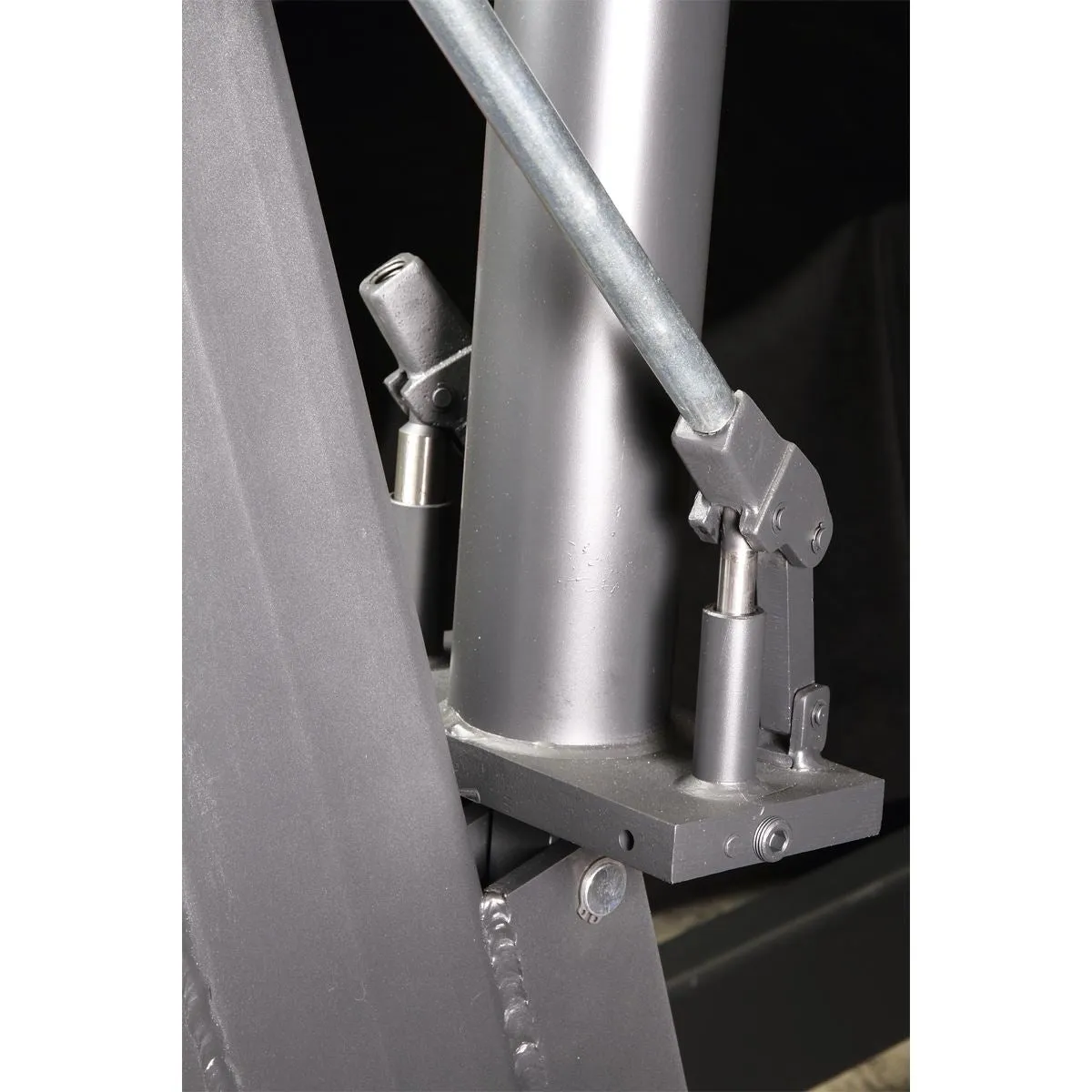

Crane features two pumps one for slow, safe controlled lifting and a quick lift pump.
Weighs 299kg and is suitable for workshop use.
3 Year guarantee*.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Specification:
- Model No PFC301
- Brand: Sealey Premier
- Height Jib Down: 1930mm
- Height Legs Folded: n/a
- Height of Frame: 265mm
- Length Legs Extended: n/a
- Length of Jib Position 1: 1430mm
- Length of Jib Position 2: 1580mm
- Length of Jib Position 3: 1730mm
- Length of Jib Position 4: 1870mm
- Length of Jib Position 5: n/a
- Length: 2400mm
- Lifting Capacity in Position 1: 3000kg
- Lifting Capacity in Position 2: 2500kg
- Lifting Capacity in Position 3: 2300kg
- Lifting Capacity in Position 4: 2000kg
- Lifting Capacity in Position 5: n/a
- Max. Lift Ht at Jib Position 1: 2720mm
- Max. Lift Ht at Jib Position 2: 2850mm
- Max. Lift Ht at Jib Position 3: 2950mm
- Max. Lift Ht at Jib Position 4: 3050mm
- Max. Lift Ht at Jib Position 5: n/a
- Nett Weight: 299kg
- Rear Width: 1275mm
- Width Front Frame: 1300mm
- Width Inside Front Frame: 1100mm
Catalogue Page: Page 319
