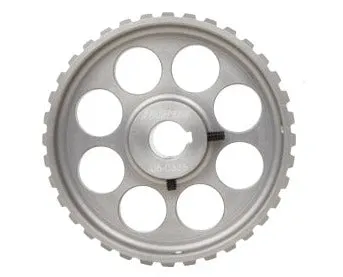

Oil Pump Pulleys
Peterson offers a selection of Gilmer oil pump pulleys. Our pulleys are CNC machined out of 6061 T6 aluminum and then hard coat anodised for long term wear resistance. The center hole is a standard 5/8" with a 3/16" keyway to fit popular wet and dry sump oil pumps.
Features
- 6061 T6 billet aluminum
- Hard coat anodized
- Gilmer tooth profile
- Fits standard 5/8" shaft with 3/16" keyway
- 4 set screws for firm connection to the pump shaft
Gilmer
| Part # | Teeth | OD | Width |
|---|---|---|---|
| 06-0324 | 24 Tooth | 2.839" | 1.020" |
| 06-0328 | 28 Tooth | 3.312" | 1.020" |
| 06-0332 | 32 Tooth | 3.375" | 1.020" |
| 06-0336 | 36 Tooth | 4.273" | 1.020" |
| 06-0328-W | 28 Tooth | 3.312" | 1.125" |
Accessories
Pulley Flanges
| Part # | Description |
|---|---|
| 05-0624 | Fits 06-0324 |
| 05-0628 | Fits 06-0328, 06-0328-W |
| 05-0632 | Fits 06-0332 |
| 05-0636 | Fits 06-0336 |
Set Screws
| Part # | Description |
|---|---|
| 05-0398 | Set Screw, Package of 10 |
Key Stock
| Part # | Description |
|---|---|
| 05-0399 | Pulley Key Stock |
