Instructions

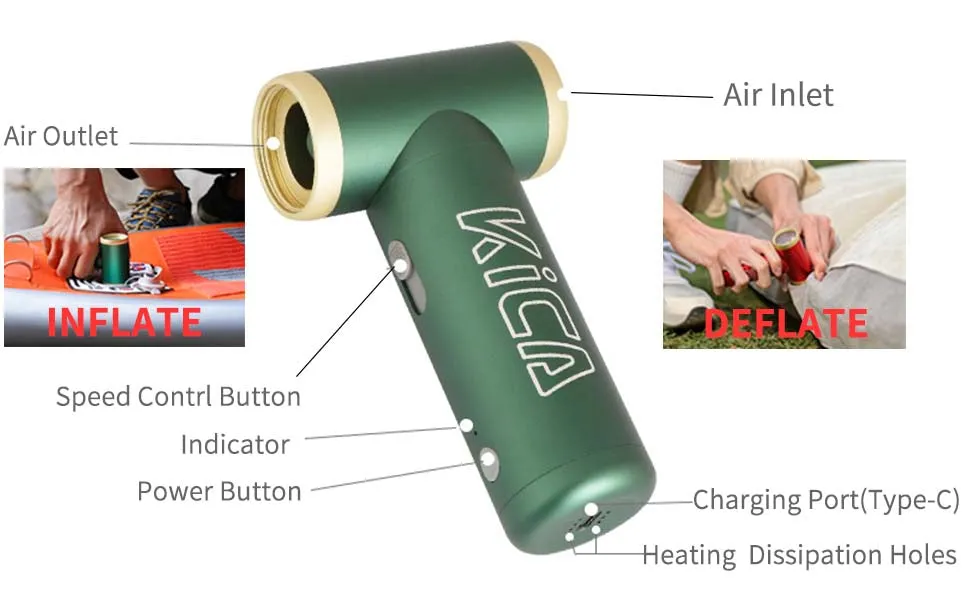

Overview

1. Air outlet
2. Suction port
3. Speed control button
4. Indicator
5. Power button
6. Charging port
7. Heat dissipation holes

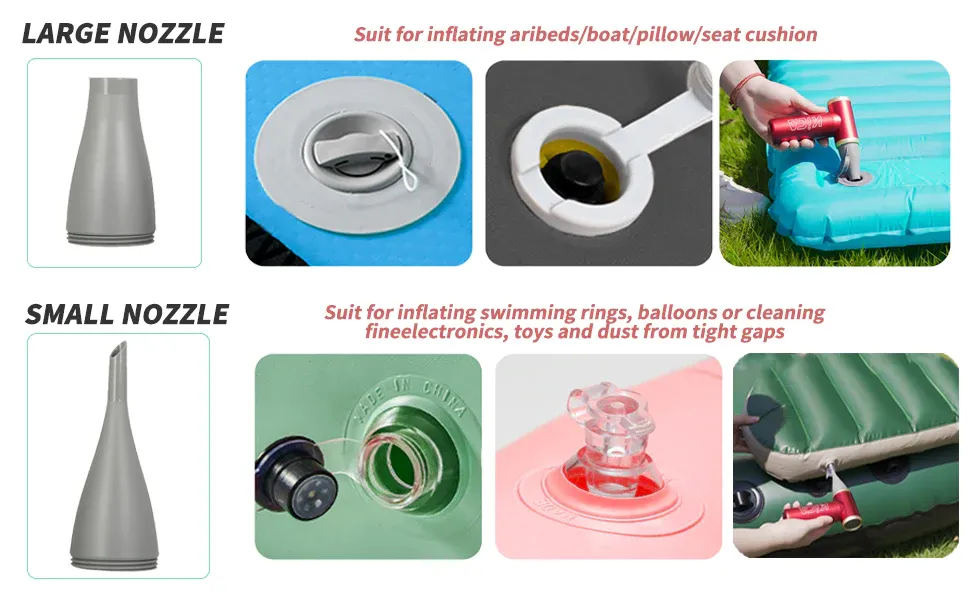

8. Large nozzle
9. Small nozzle
10. USB-C cable

Start to Use

1. Blowing dust

Power ON / OFF

Long press the power button to power on / off.
Single tap the power button after power on to enter standby mode, tap again to restart.

Never block the suction port, air outlet and heat dissipation holes while using or the product might be damaged.

Speed control

Slide the speed control button to adjust the wind speed.

Indicator

Intelligent protection

The product will auto power off, if there is no operation within 3 minutes in standby mode.

Charging

Specifications

• Product name: KiCA Jet Fan 2
• Model: KiCAAM02
• Operating voltage range: 12.8V~16.8V
• Operating temperature range: 0℃ ~ 40℃
• Storage temperature range: -40℃ ~ 80℃
• Battery capacity: 1100mAh
• Charging time: About 3H10min (5V/1A)

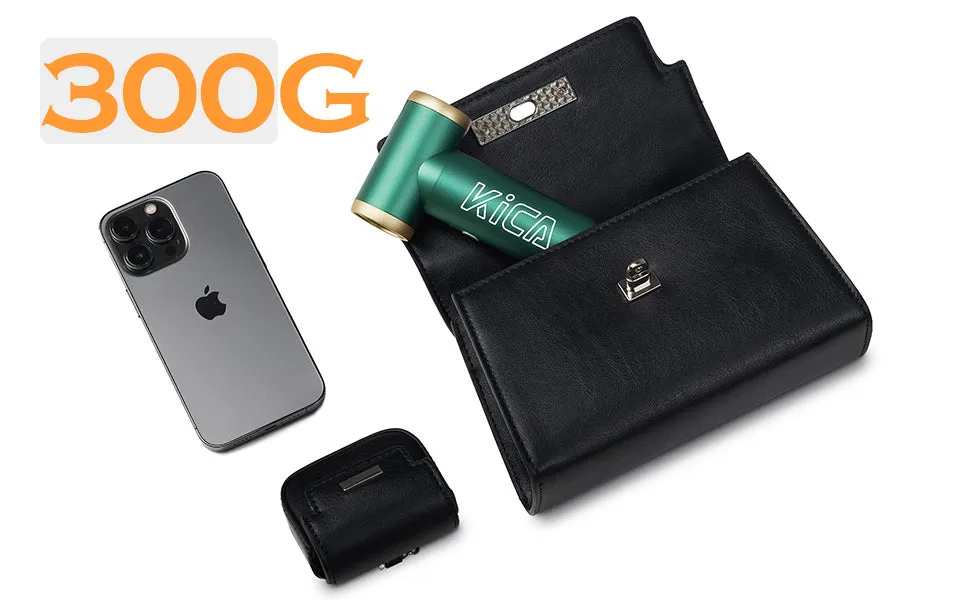

• Weight: 301g (Reference value)
• Size: 74×37.4×128.8mm
• Max. runtime: About 4H30min (Test in lab environment under the low speed)

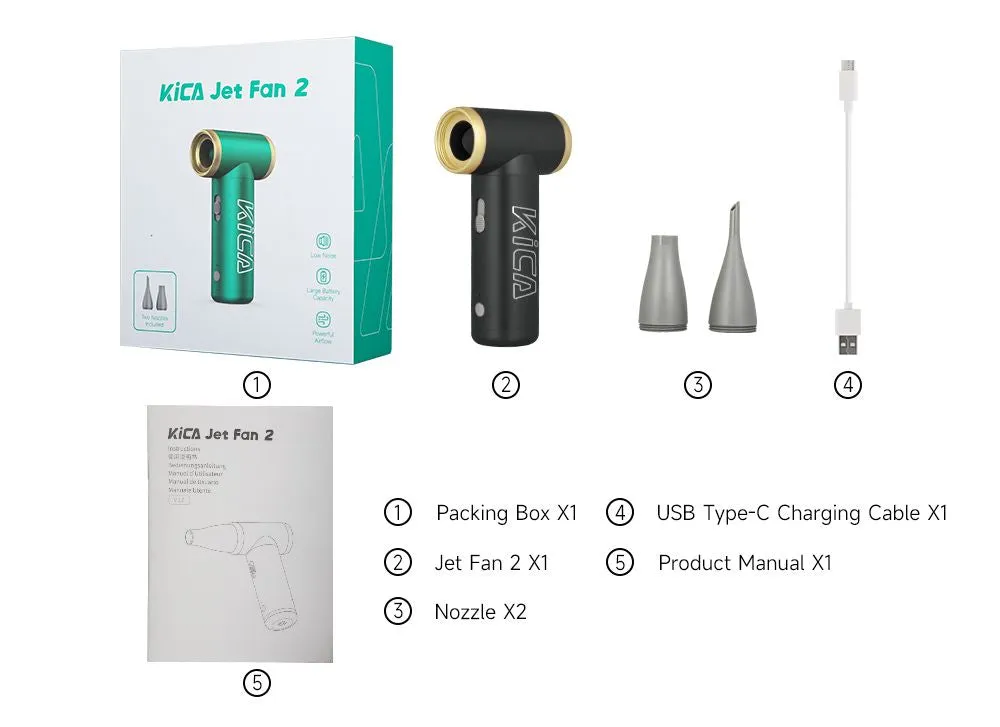

• Packing list:
• Main body×1, Large nozzle×1, Small nozzle×1, USB-C cable×1, Manual×1

Cautions
Please read and save this quick start guide carefully.
To reduce the risk of fire, serious injury, and property damage, observe the following safety guidelines when using:

DO NOT use it when your hands are wet.

DO NOT allow the product to come into contact with any kind of liquid. DO NOT leave the product out in the rain or near a source of moisture. DO NOT drop the product into water.

Never block the air openings of the machine while using.

Never drop or insert any objects into any openings.

DO NOT leave it near heat sources such as a furnace or heater. DO NOT leave the product inside of a vehicle on hot days.

DO NOT use it where flammable items are being used (like gas, spray and so on), or it might cause fire or explosion.

1. Damage may be caused to it if dropped or subject to external force. Never operate the product if it is not working properly, or if it has been dropped or damaged. Return it to a service center for examination and repair.
2. Do not pull, wrap, squeeze or modify the charging cable. Never use a damaged charging cable.
3. If you can hear abnormal sound, smell something unusual while using, or the product is overheat, or blades work abnormally, please stop use it immediately.
4. Never disassemble the product in any way or it may cause damage. If you accidentally disassemble it and it is not working properly, please return it to a service center for examination and repair.

Usage and storage

1. The air from the product’s blowing port is cold. While using the product, keep hair away from the air inlet and outlet.
2. Do not direct air toward eyes, ears, mouth or other sensitive areas.
3. The product should never be left unattended after powered on.
4. Keep the product out of the reach of children and pets.

1. Do not place or store the product where it can fall or be pulled into a tub or sink.
2. Never use the product when the temperature is too high or too low.
3. When not in use, the product should be stored in a well ventilated and dry location, and avoid direct sunlight.

Maintenance

1. This product is not waterproof. DO NOT use any liquid cleansers (Alcohol, washing water, detergent and so on). Only use a soft dry cloth to clean it.
2. Please regularly remove the attachments on the air inlet and outlet.
3. DO NOT use nail or any sharp object to press, rub or pierce the air inlet and outlet to avoid damage to the product.
4. DO NOT over-charge or over-discharge the battery, which will damage the battery.

Precautions when discarding the product
The lithium ion battery used by the product is a recyclable and renewable valuable resource.
When discarding it, please have it handled by a professional agency that can recycle rechargeable batteries. Before discarding the product, power it off and take the lithium ion battery out from it following the steps below. The battery is to be disposed of safely.

1. Disassemble the top housing with help of a professional tool.
2. Pull out the battery terminals from the PCBA.
3. Use a professional cutter to cut off the bottom housing and then take out the battery.
