Pan Depth: 8"
Pan Capacity: 7 Quarts (6.6 Liters)
System Capacity: 8 Quarts (7.6 Liters)
Description: 8" Long Sump, 8.25" Wide Sump

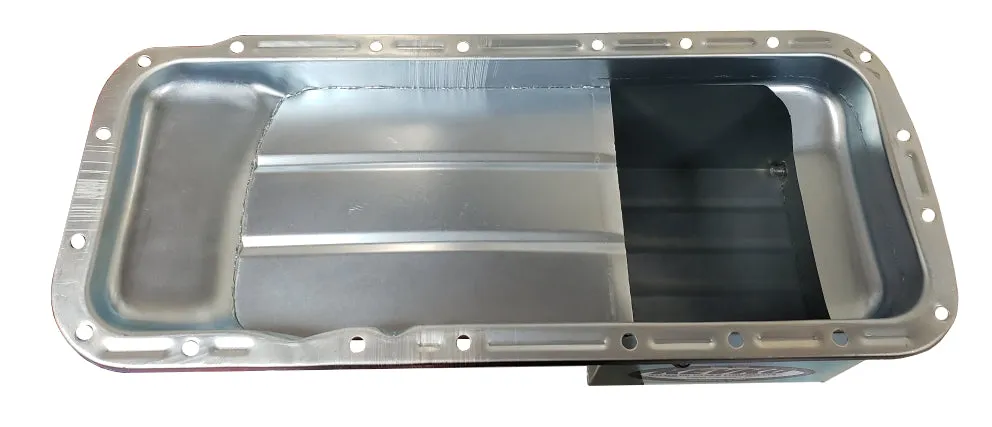

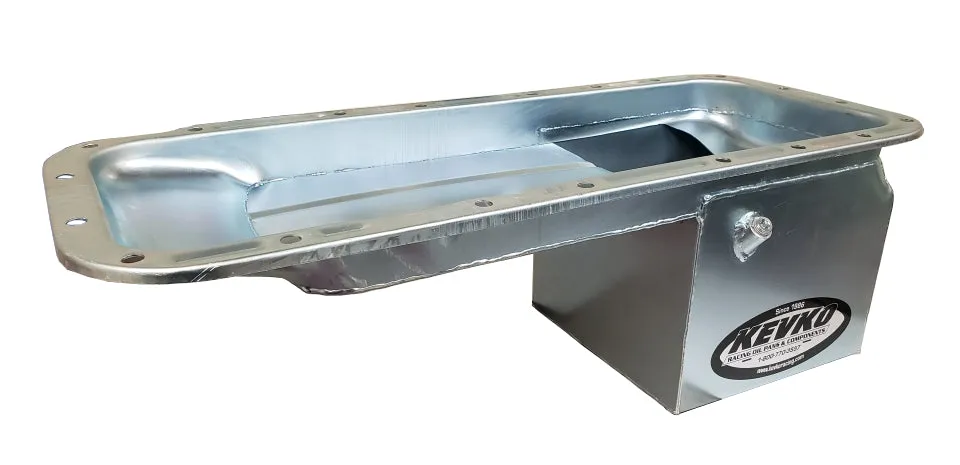

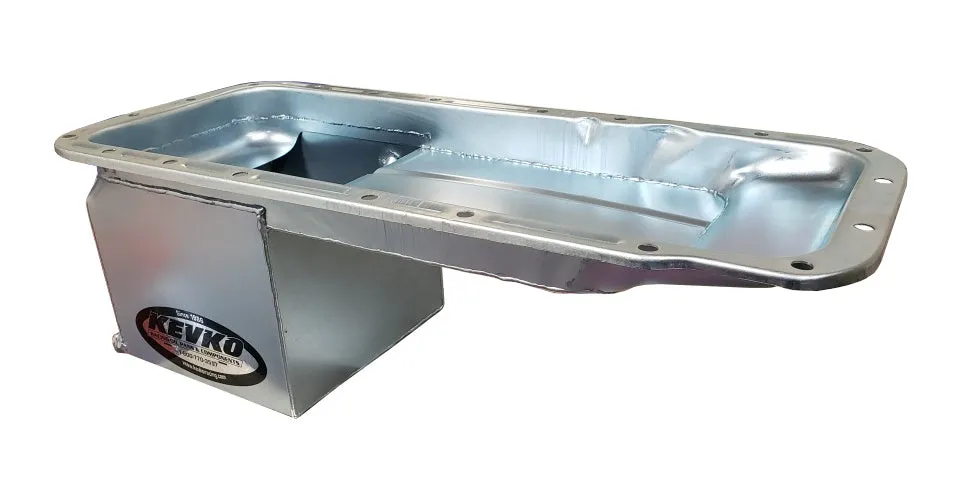

8" deep truck pan works in both 2 Wheel Drive and 4X4 trucks. The pan is constructed from 16 GA steel and comes standard with oil baffles for streer use and hardcore off-road use. Uses Kevko K128 or universal dipstick with 1/4" NPT t Pan is zinc plated. (External pickup options are available in any 440 oil pan, call 800-770-3557 for custom options)
Sold as Pan only. Pickup tube and accessories listed below may be required.
| Part # | Description | |
| Pickup Tube with 3/8" NPT Inlet | ||
| Pickup Tube with 1/2" NPT Inlet | ||
| Standard Universal Dipstick | ||
| Stainless Steel Flex Dispstick | ||
| Lokar Stainless Steel Flex Dipstick W/ locking top | ||
| Standard Volume Oil Pump | ||
| High Volume Oil Pump | ||
| Oil Pump Drive Shaft | ||
| Fel-Pro Oil Pan Gasket | ||
| Additional Drain Plug | ||
| Magnetic Drain Plug |
