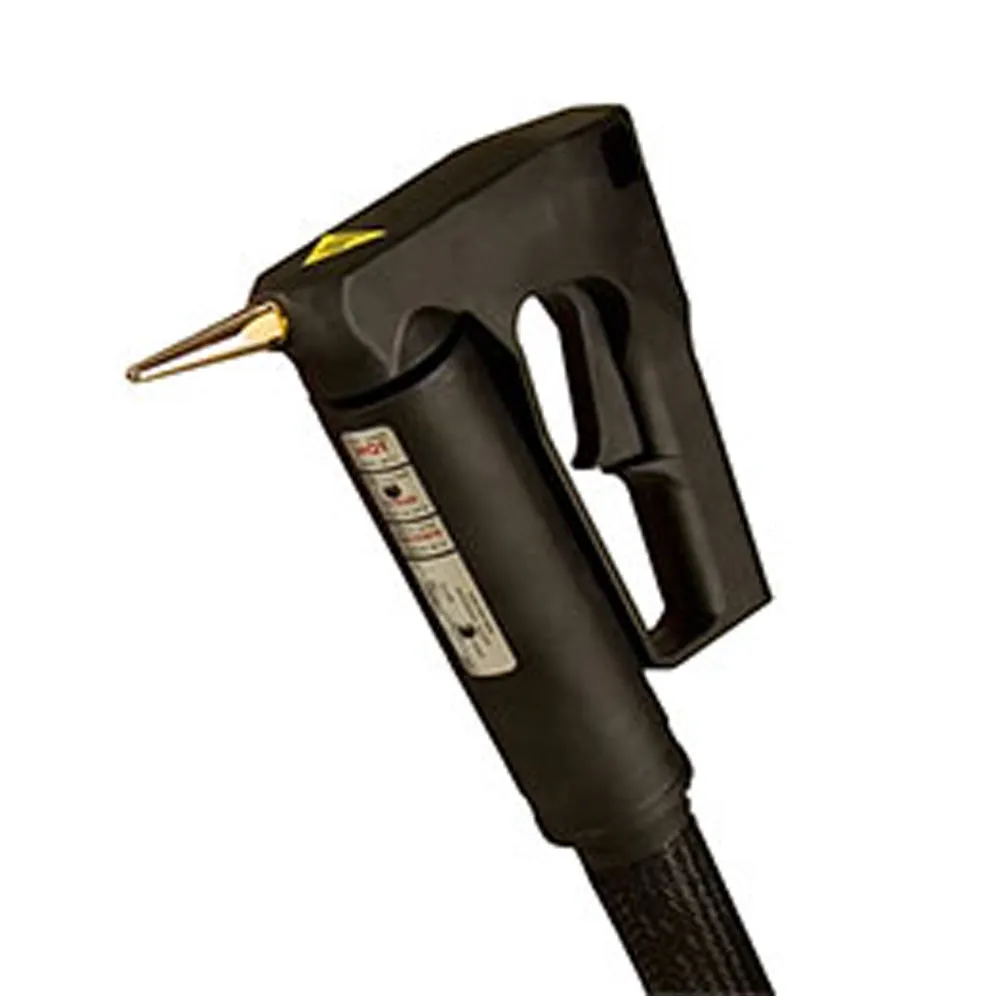

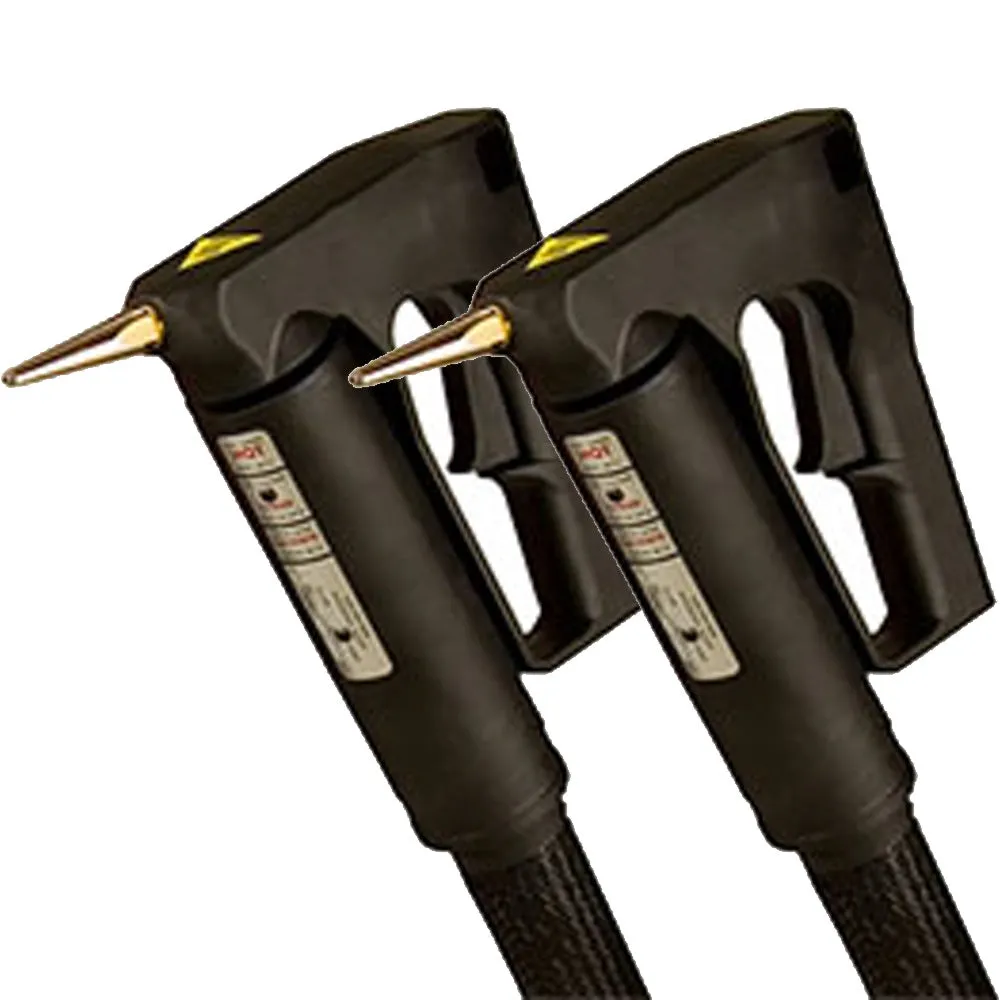

When to Use the Astro Packaging L4 240V Un-Switched Hot Melt Handgun
Use the Astro L4 240V un-switched hot melt handgun in conjunction with a system for manually applying hot melt adhesive. This industrial, lightweight handgun offers a clean cut-off to avoid dripping and an RTD sensor for precise temperature control.
About the Un-Switched Handgun
Un-switched hot melt handguns do not communicate with the bulk tank motor and pump. This means the pump and motor will remain on and working even when you are not actively dispensing hot melt. This is the most common type of gun to tank configuration.
Specifications
General Specifications
Handgun Weight
- 1.75 lbs. (0.8 kg)
Handgun Swivel
- Unswitched: 360° Continuous
- Switched: Restricted to 360°
Temperature Control
Thermostat Models
Handgun
- Preset fixed thermostat in handgun body. Select 25°F increments from 200-450°F
Hose
- Capillary bulb in hose with adjustable thermostat in melt unit.
Solid State Models
Handgun
- RTD sensor located in handgun body. Full range solid state temperature controller located in melt unit.
Hose
- RTD sensor located in hose. Full range solid state temperature controller located in melt unit.
