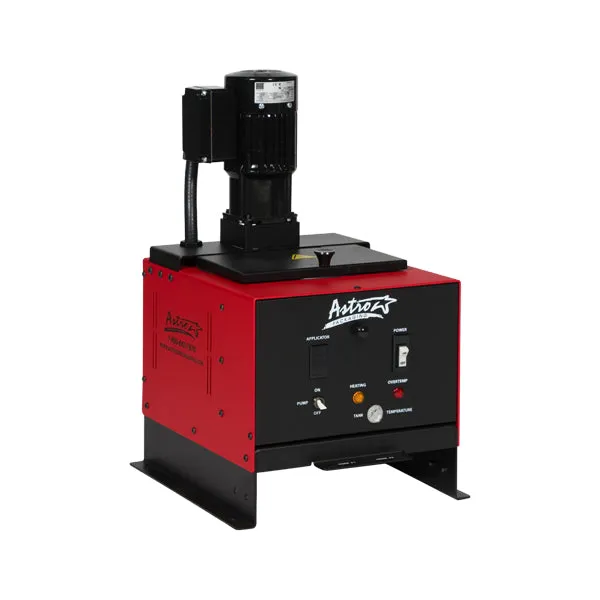

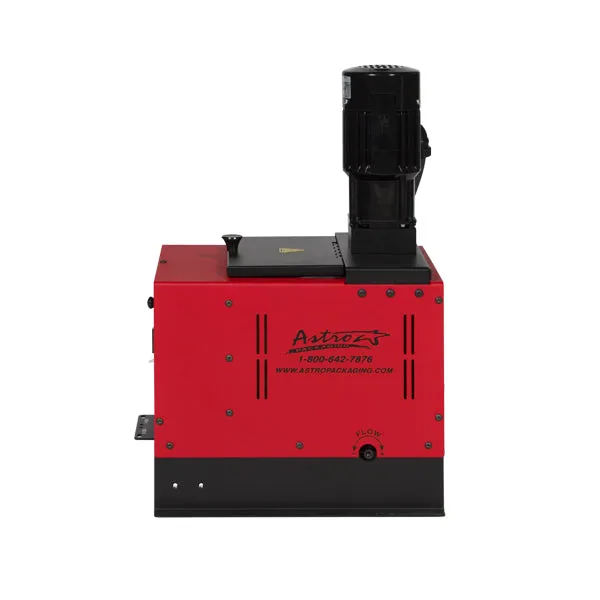

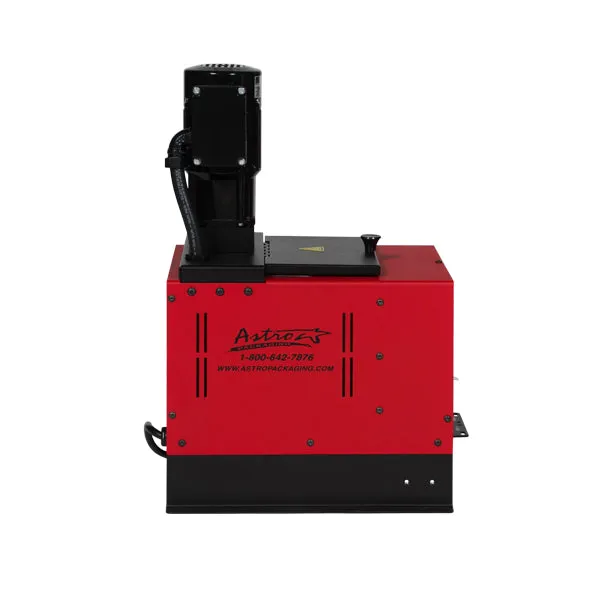

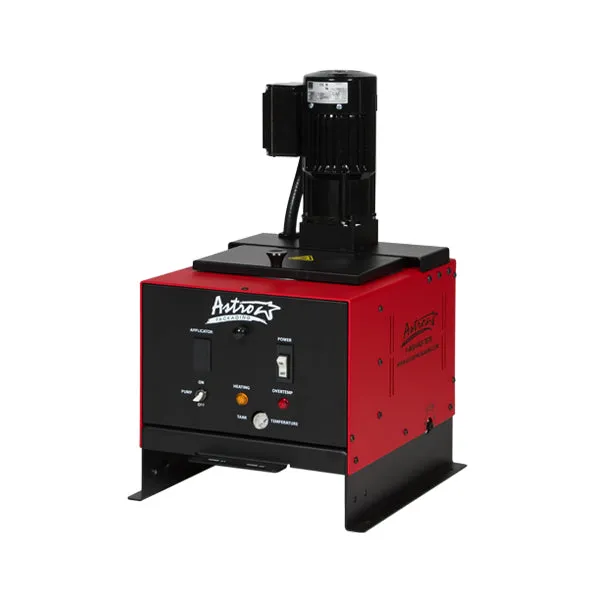

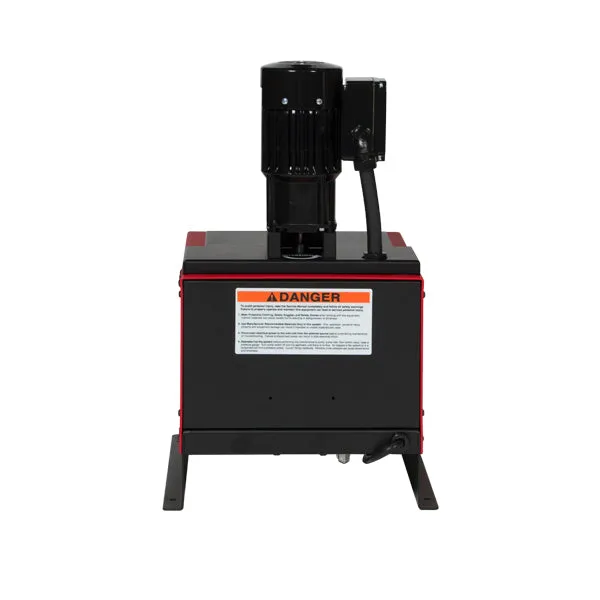

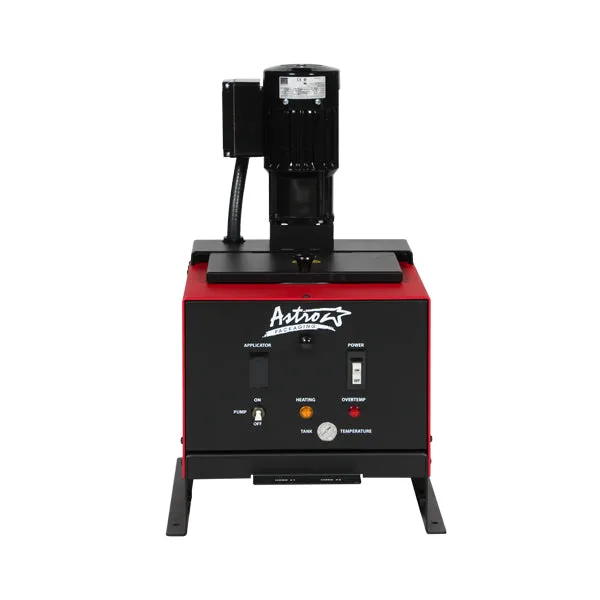

Astro LS10 Bulk Hot Melt Tank Overview
The Astro LS10 Bulk Hot Melt Tank is a reliable, all-electric system designed for manual packaging and product assembly. It features a Teflon®-coated 10 lb. tank and serves as a quick and economical alternative to tape, cold glue, and metal fasteners. This system can support one or two handguns/hoses.
User-friendly and easy to maintain, the LS10 only requires connection to an electrical outlet. Once connected and heated, the pump switch on the control panel activates the motor-driven pump. This positive displacement gear pump can deliver up to 45 pounds (20.4 kg) of adhesive per hour, ensuring consistent and efficient performance.
The LS10 is also available as a with hose and hand gun.
The LS10 system is a direct replacement for the Slautterback® Little Squirt and is compatible with the Little Squirt hose/gun.
Features and Benefits
- Easy-to-use all-electric design
- Lightweight for convenient portability
- Cool-touch melt unit and hoses for safety
- Handles various adhesive forms up to 25,000 cps, including pellets, granules, pillows, and blocks
- Adjustable temperature and flow settings
- Durable, fan-cooled AC gear motor with 44/36 rpm for extended lifespan
- Dependable positive displacement gear pump
- Supports one or two handgun/hose setups
- Compatible with both L1 and L4 handguns
Specifications
- Model: LS10
- Tank Capacity: 10 lb. (4.5 kg)
- Melt Rate: 8 lb./hr. (3.6 kg/hr.)
- Pump Rate: 45 lb./hr. (20.4 kg/hr.)
- Temperature Range: 100°F to 450°F (37.8°C to 232.2°C)
- Ambient Temperature Range: 20°F to 122°F (-6.7°C to 50°C)
- Temperature Control Stability: ± 25°F
- Hose/Applicator Capacity: 2
- Electrical Service:
- 120V AC 50/60 Hz 12 A
- 240V AC 50/60 Hz 12 A
- Viscosity (Max.): 25,000 cps
- Dimensions: 13.5" x 21.5" x 14"
- Weight (Empty) 64 lbs. (29 kg)
- Approvals & Certifications: CE
